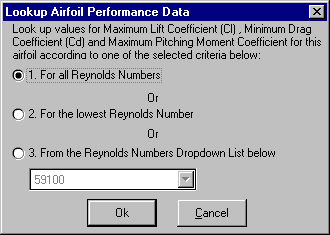

This new feature provides the capability to lookup the maximum lift coefficient, minimum drag coefficient and maximum pitching moment data from the Winfoil database for one of the selected criteria;

1. For all reynolds Numbers

2. For the lowest Reynolds Number

3. For one of the listed Reynolds Numbers for the selected airfoil.


This enables the user to quickly obtain this data from the database and set these for the airfoil. These values can then be used later for searching for an airfoil for a new design.


How to use this feature;

1. Select one of the criteria for the lookup.

2. Click on the OK button to process or

click on the Cancel button to exit.
