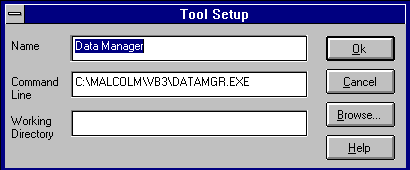

This screen is used to select a program to be added to the Tool Menu.

Two fixed tools are provided. These are;

1. Calculator

2. Recalc Airfoil Properties


The calculator can be modified to use whichever calculator program you wish. You cannot delete this tool.

The recalc airfoil properties tool cannot be modified. This is used to recalculate the airfoil thickness and camber for every airfoil in the database. If this tool is selected then a prompt will be displayed to confirm that you wish to recalculate the thickness and camber for every airfoil.


The following details need to be entered;

Name

This is the name of the program which will appear in the Tool Menu. If you do not enter this then it will default to the name of the Exe file selected in the Command Line.


Command Line

This is the file name of the program including the path. To select this you can click on the Browse button to open a Windows File Selection Dialog Box.


Working Directory

This is an optional parameter. This entry specifies where the working directory for the program will be. In most cases this will not be required to be entered.


All settings are saved so that the next time Winfoil is started these programs are available in the Tool menu.
