Winfoil Portal Airfoil Plotting Update

The following plotting options have been added for creating a PDF file for an airfoil plot.

  • Units in mm and inches.
  • Print grid.
  • Print airfoil name.
  • Print airfoil length.

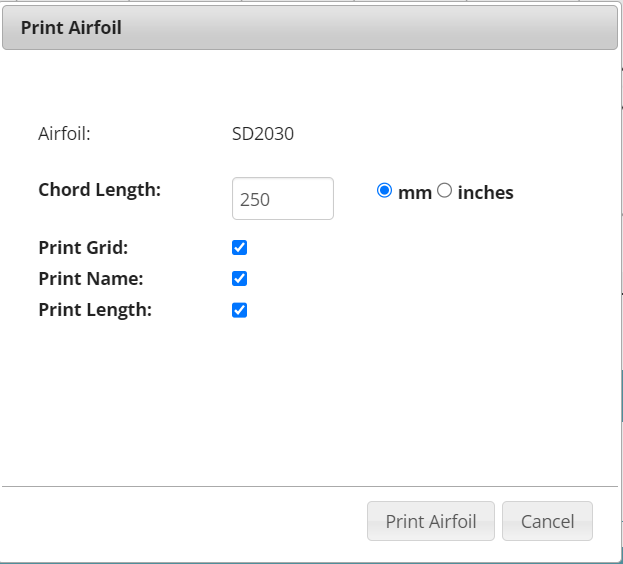

The image below shows the new options available when generating a plot of an airfoil.
These options are only available to registered Winfoil users.
A user must log into the portal to access this functionality.

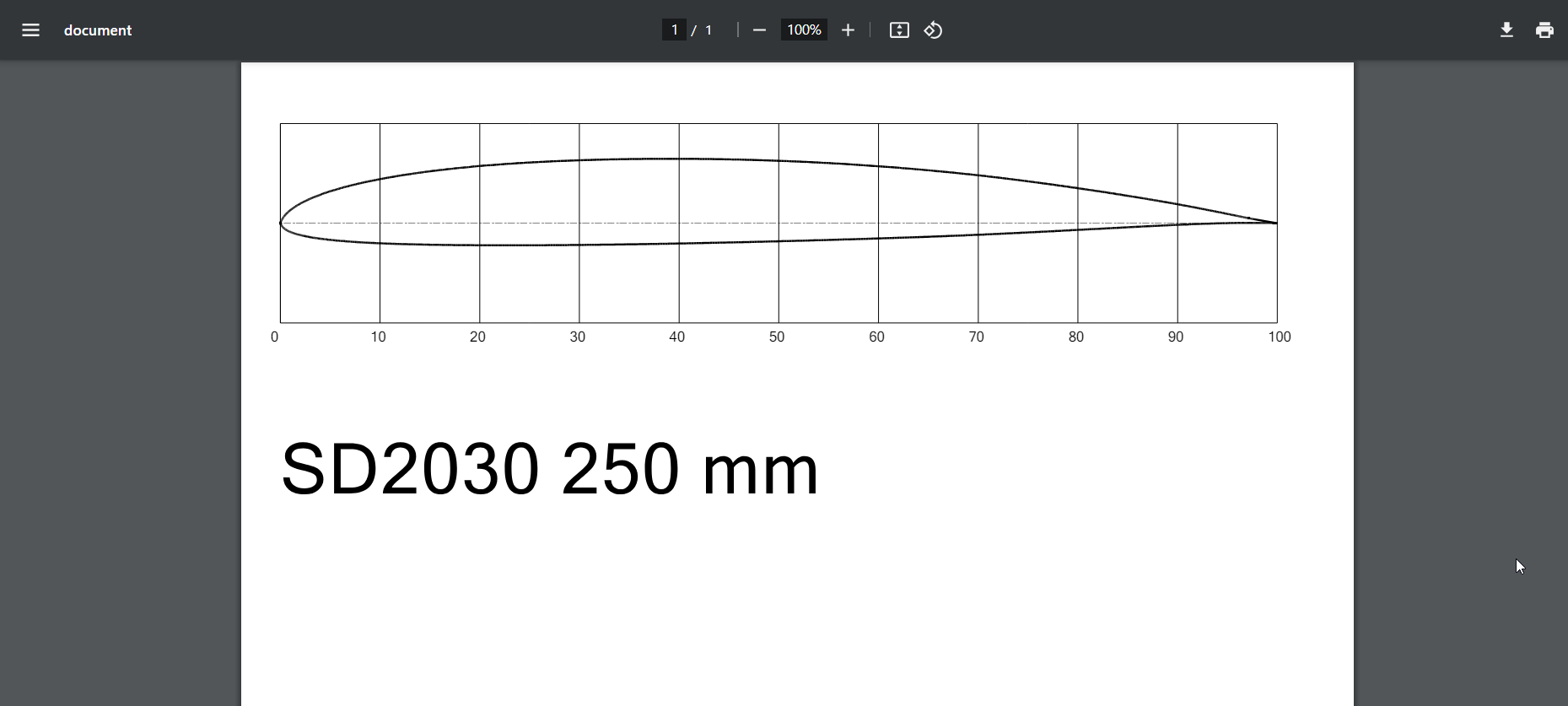

The image below shows an example of an airfoil plotted to PDF with all the new options selected.

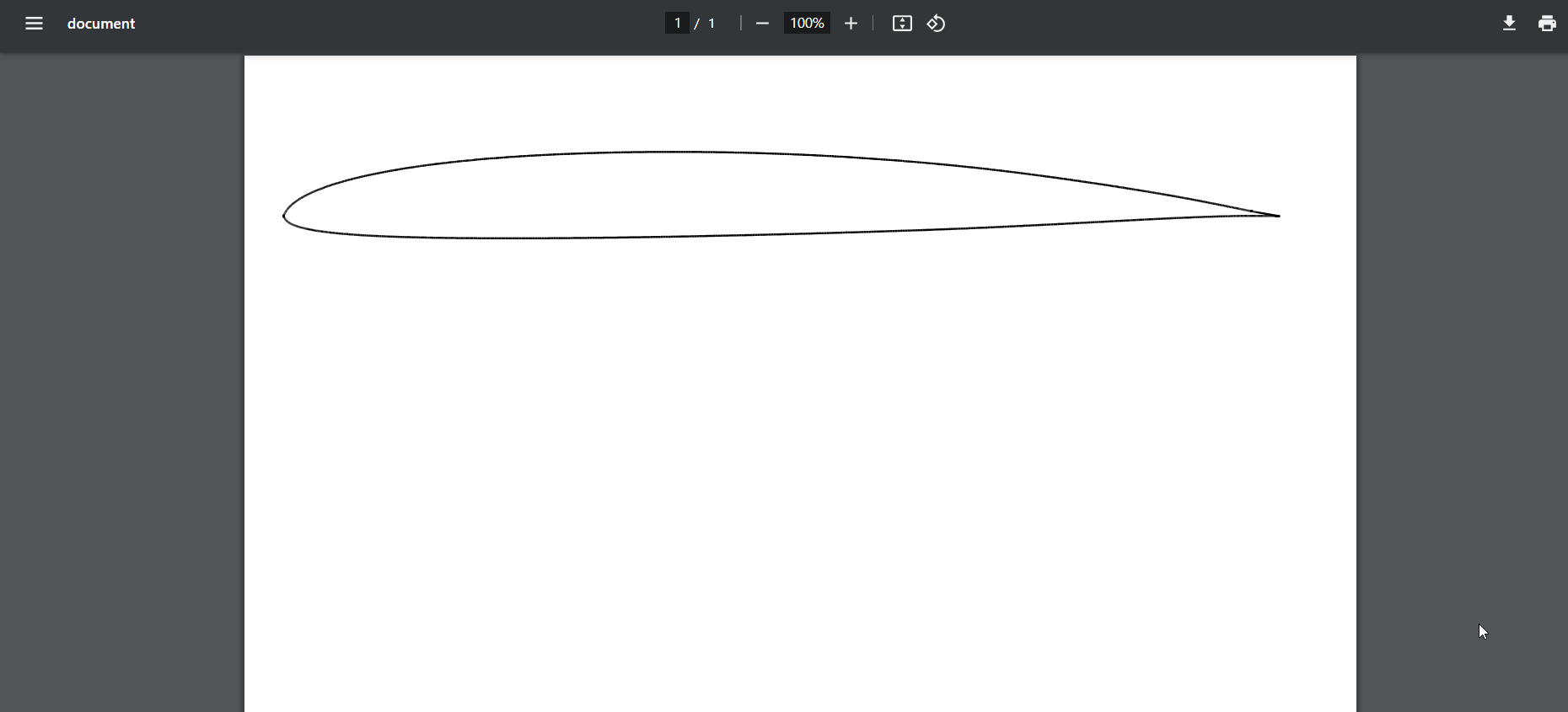

The Image below shows an example of a sample PDF with all the options deselected.
