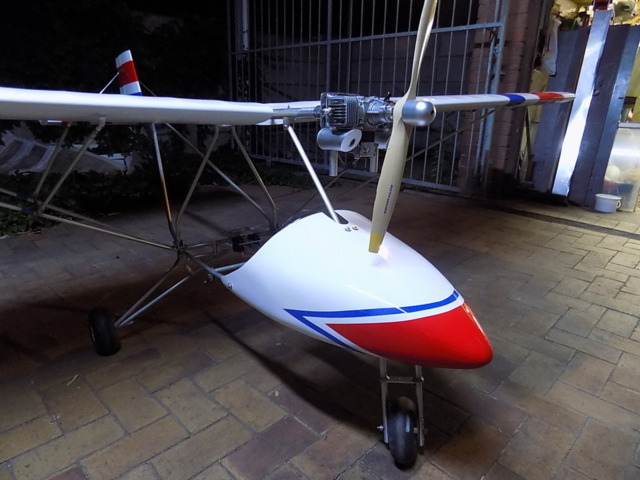

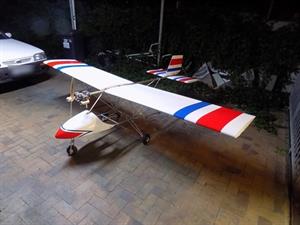

Craig's FIGHTER ULTRALIGHT
The Wingspan is 3M
The total length is 2,27M
The weight is 10 Kg
Engine is a DLE 40CC Twin
Craig started with this model about 3 Years ago on an on-off basis. Jigs had to be made for holding the parts, while tig welded together. A mould was made for the nose-cone.

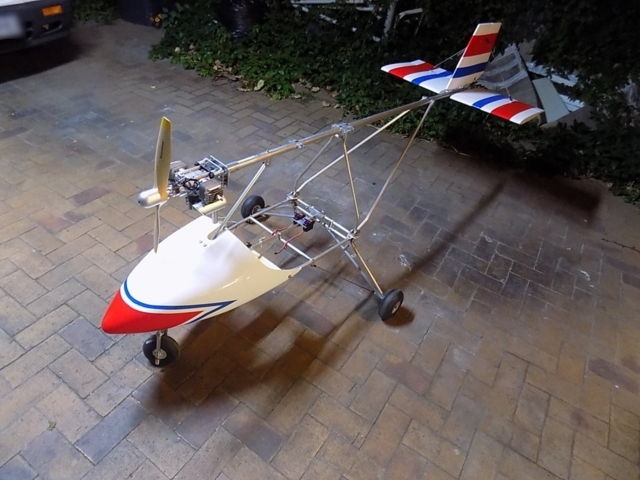

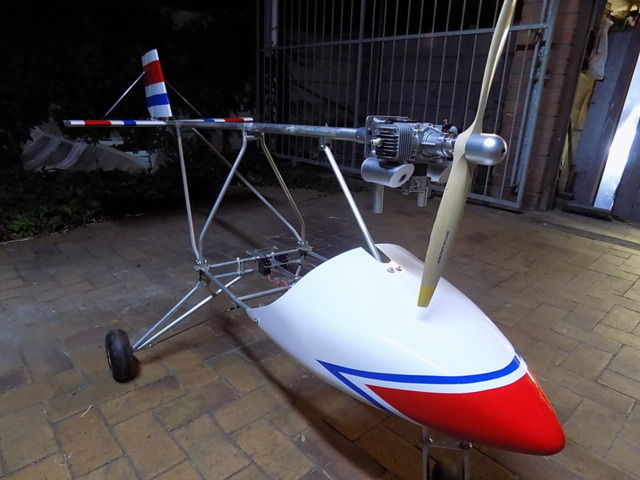

The boom is 1" dia. aluminium tubing and the frame is 1/2" aluminium tubing.
He had to purchase an Everlast Powertig 210 EXT inverter welding machine, to weld all of the joints etc.
He hopes to do the maiden flight before Xmas?
Winfoil was used for the Wing, Stabilizer and Fin design.
Winfoil 3 Other Details
