Bushcat Build Log
-
INSTRUMENT PANEL - AVIONICS TRAY
Aircraft: Bushcat 19-2226 Task Date: 13/09/2026 Builder: Malcolm Hardy Category: Instrument Panel Section: 113 Hours: 1 HR Task: Check fitting of radio. Drill holes and install rivnuts to hold radio. More... -
-

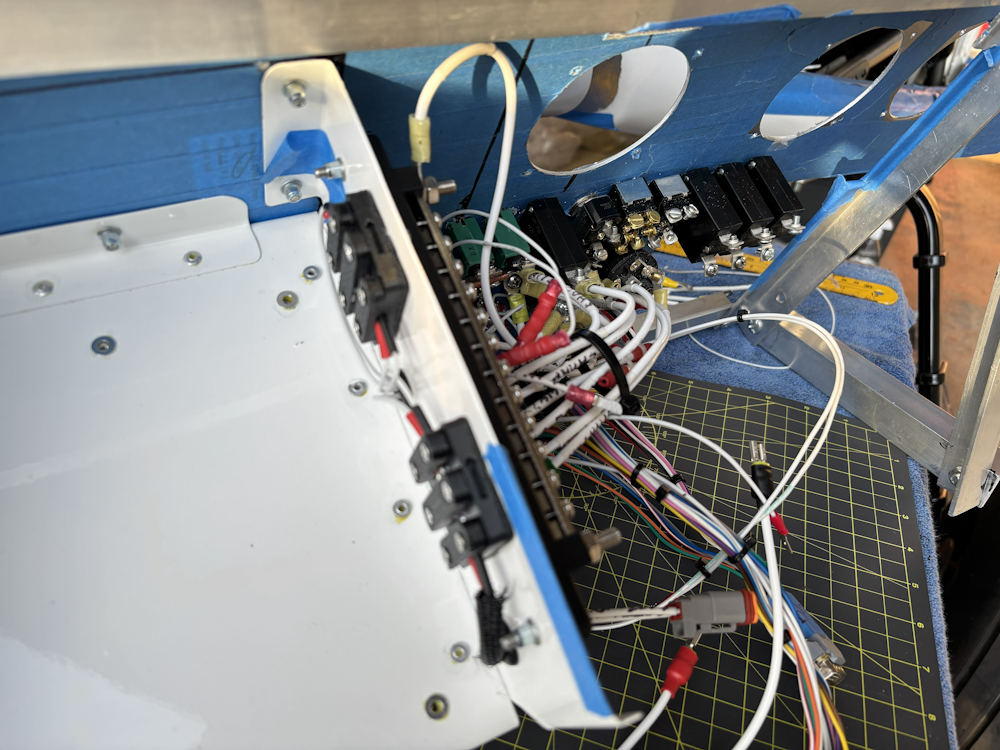

INSTRUMENT PANEL - AVIONICS TRAY

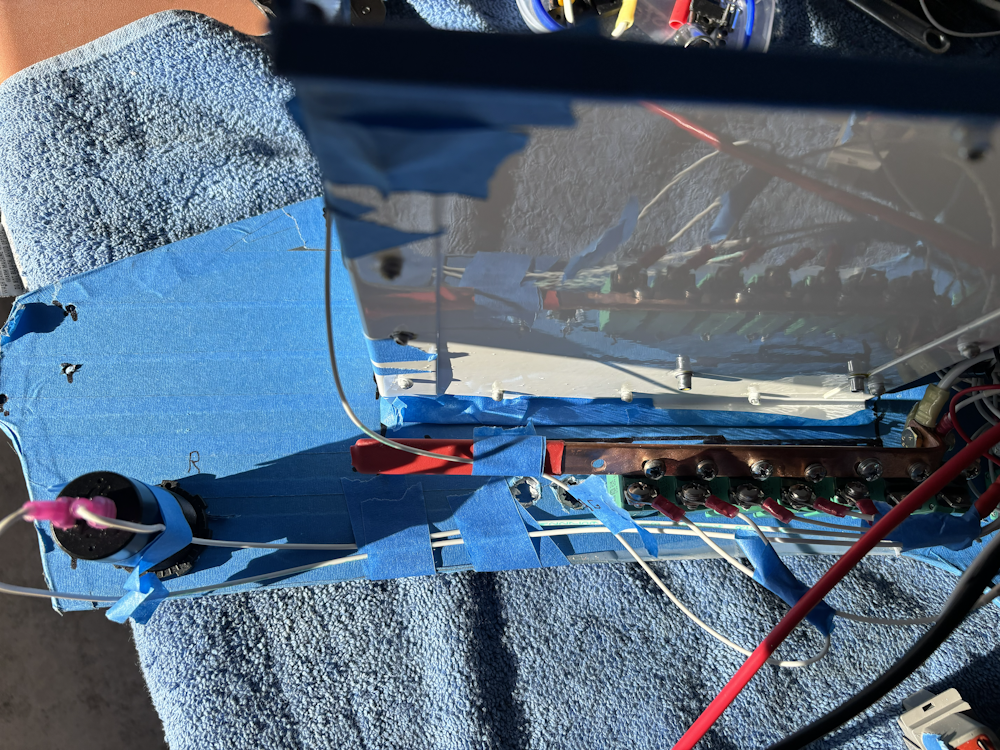

Aircraft: Bushcat 19-2226 Task Date: 12/09/2026 Builder: Malcolm Hardy Category: Instrument Panel Section: 113 Hours: 4 hrs Task: Rivet avionics tray and install rivnuts for attachment to panel and installation of the earth bus bar. More... -
-
Instrument Panel - Main starter and power supply plug

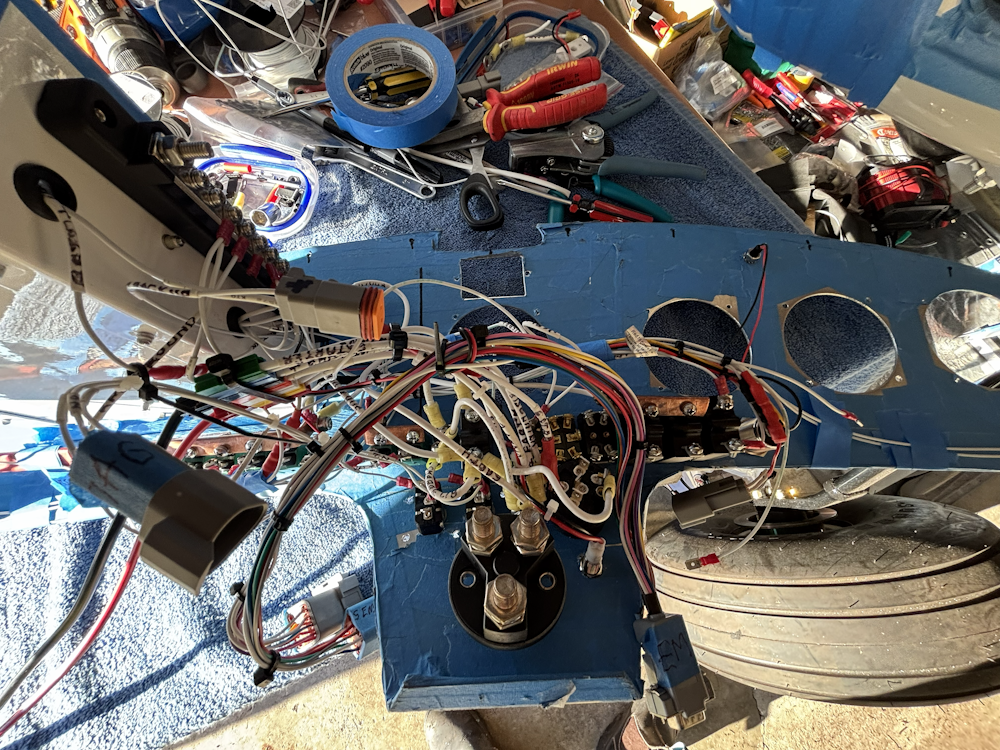

Aircraft: Bushcat 19-2226 Task Date: 21/06/2026 Builder: Malcolm Hardy Category: Instrument Panel Section: 113 Hours: 2.5 hrs Task: Wired up Anderson PP45 plug with 10 AWG wire and crimped ring terminals.These wires will be attached to the master and mag switches on the instrument panel. More... -
-

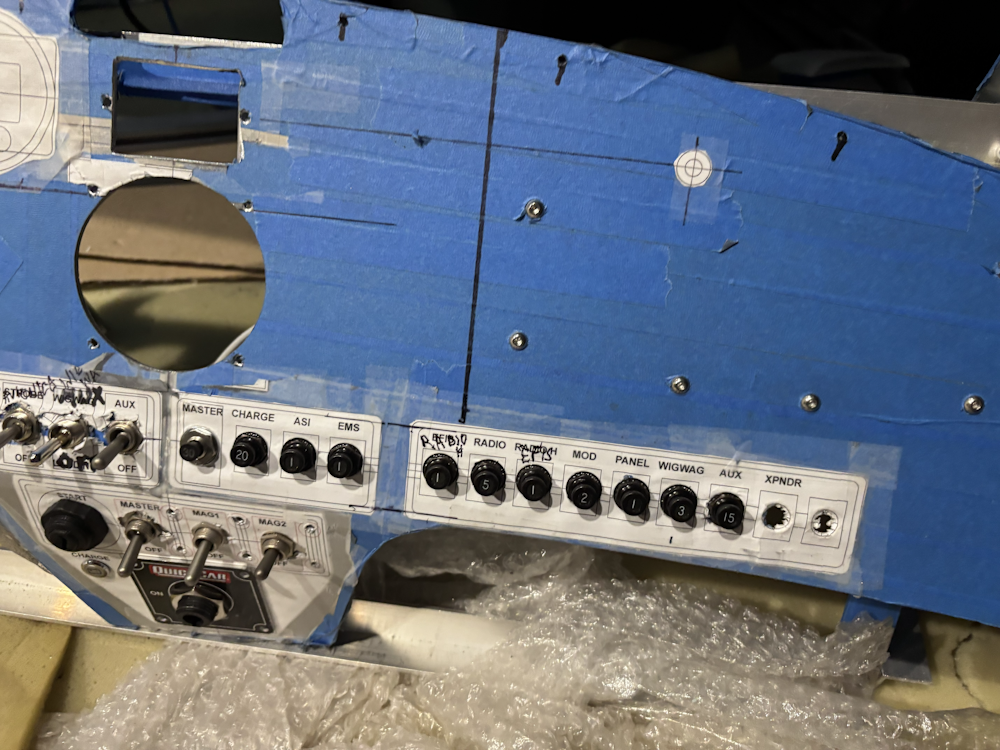

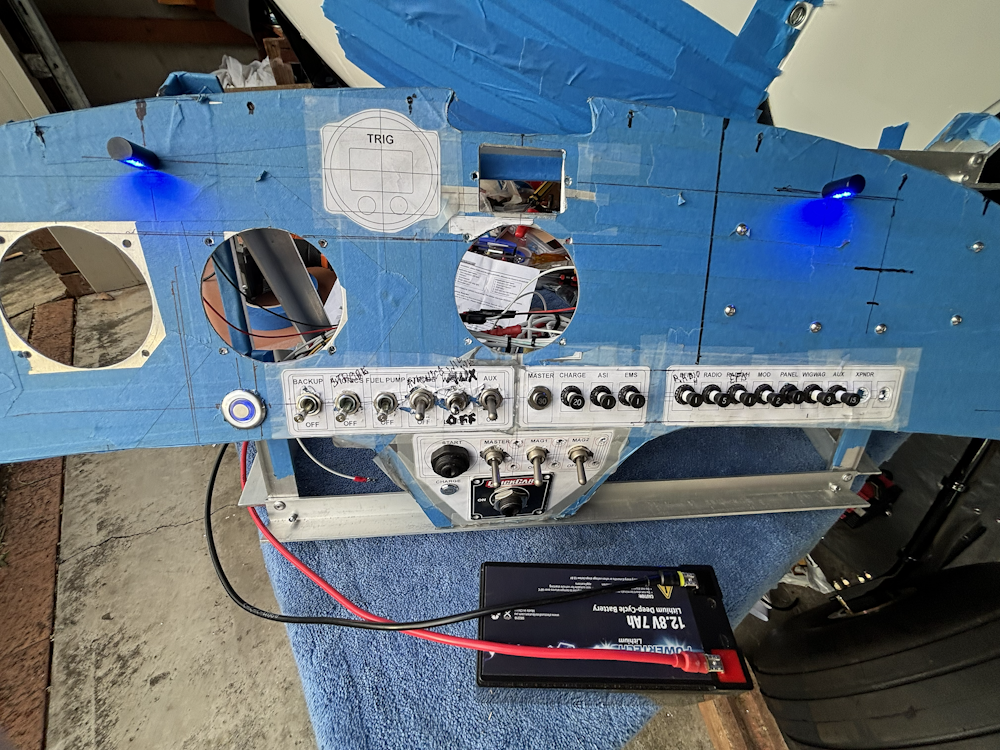

Instrument Panel

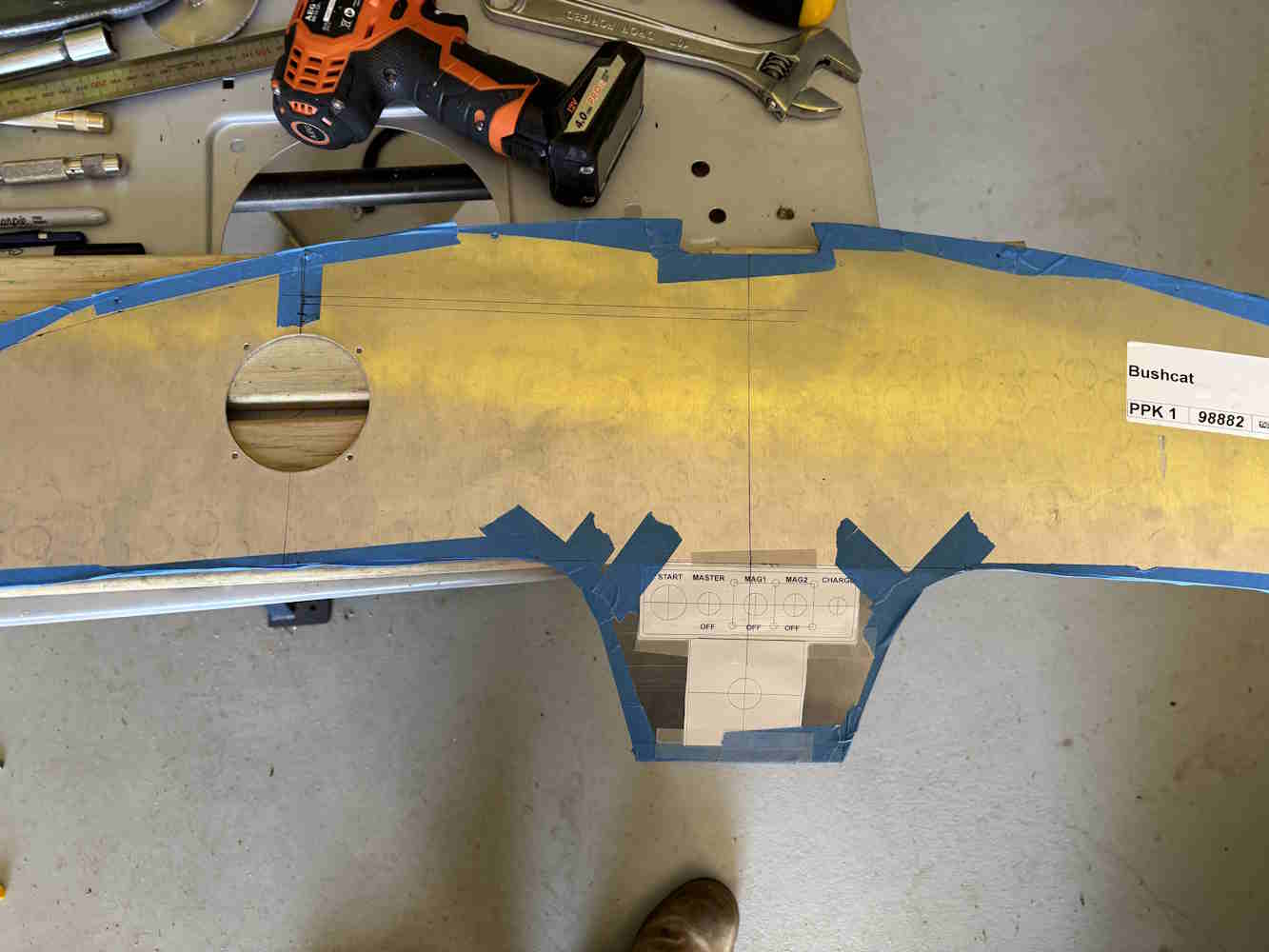

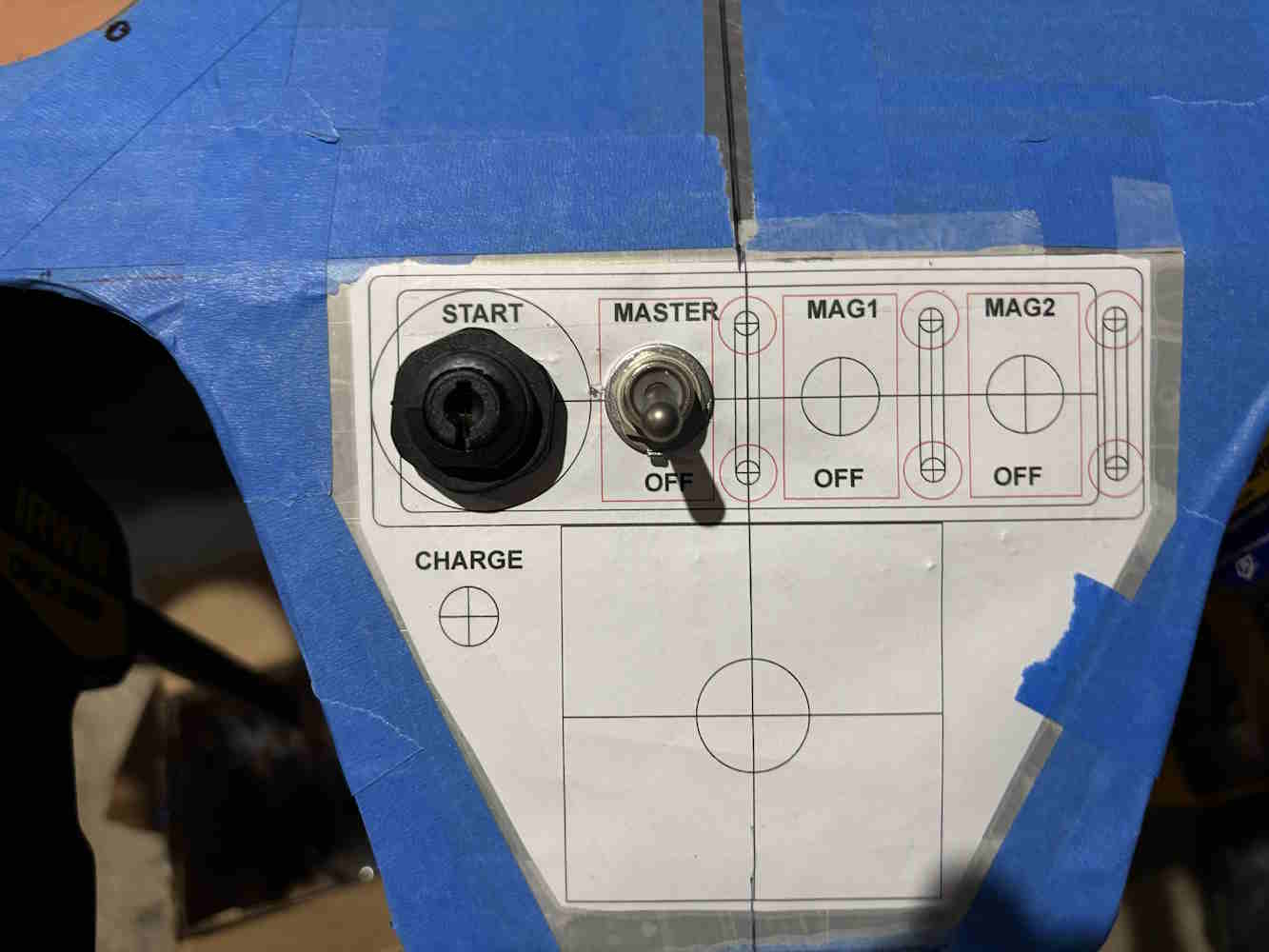

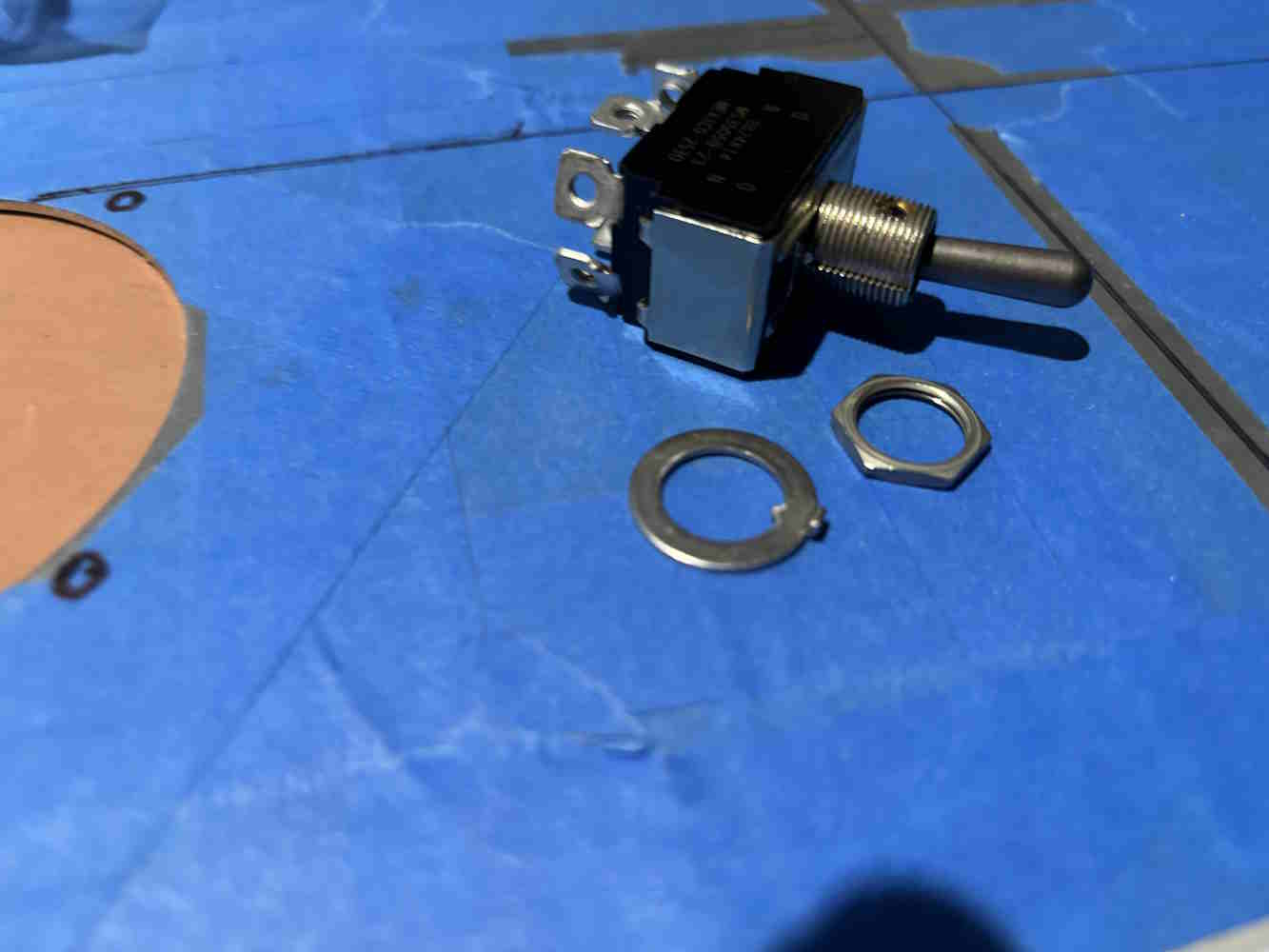

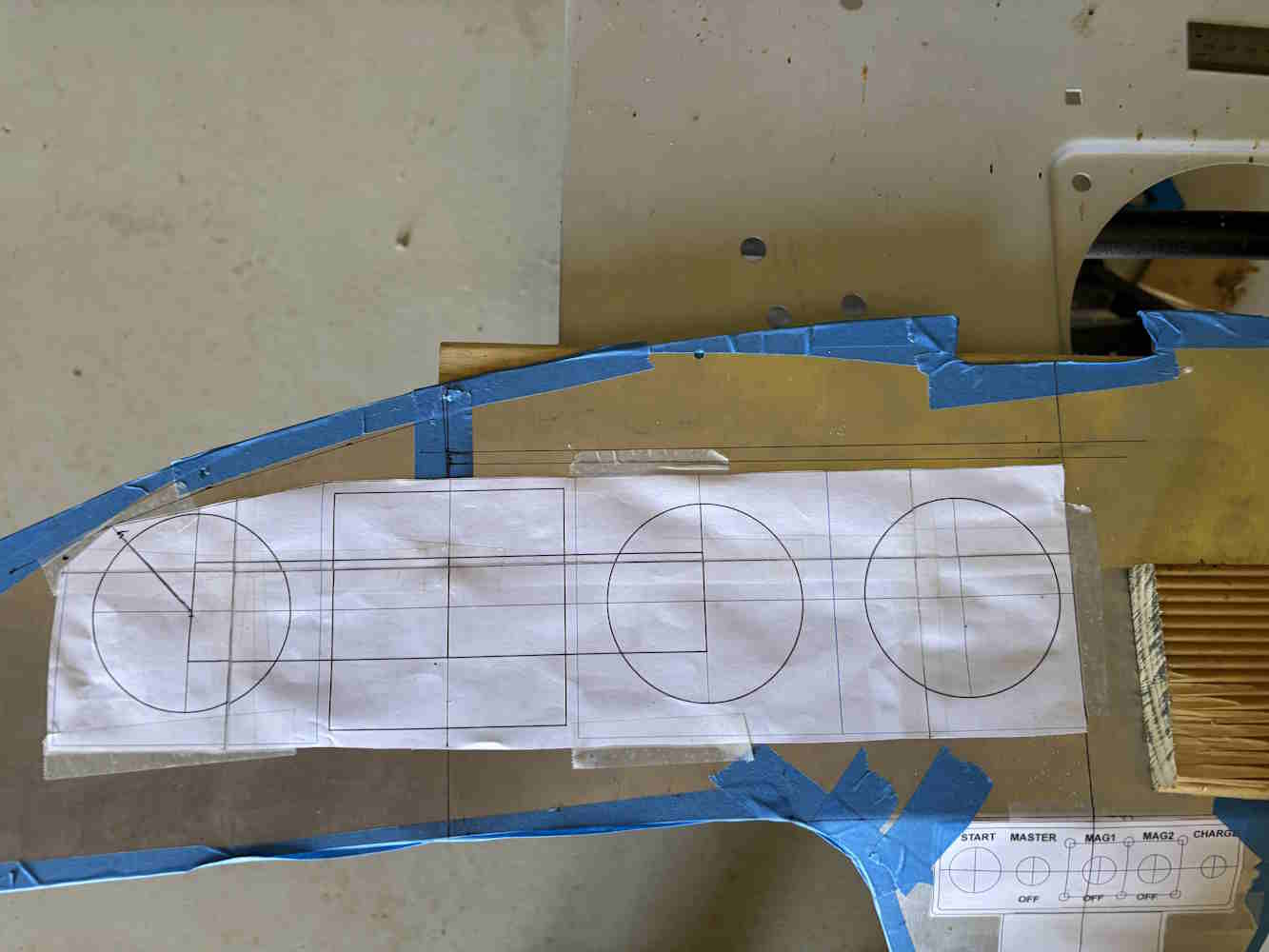

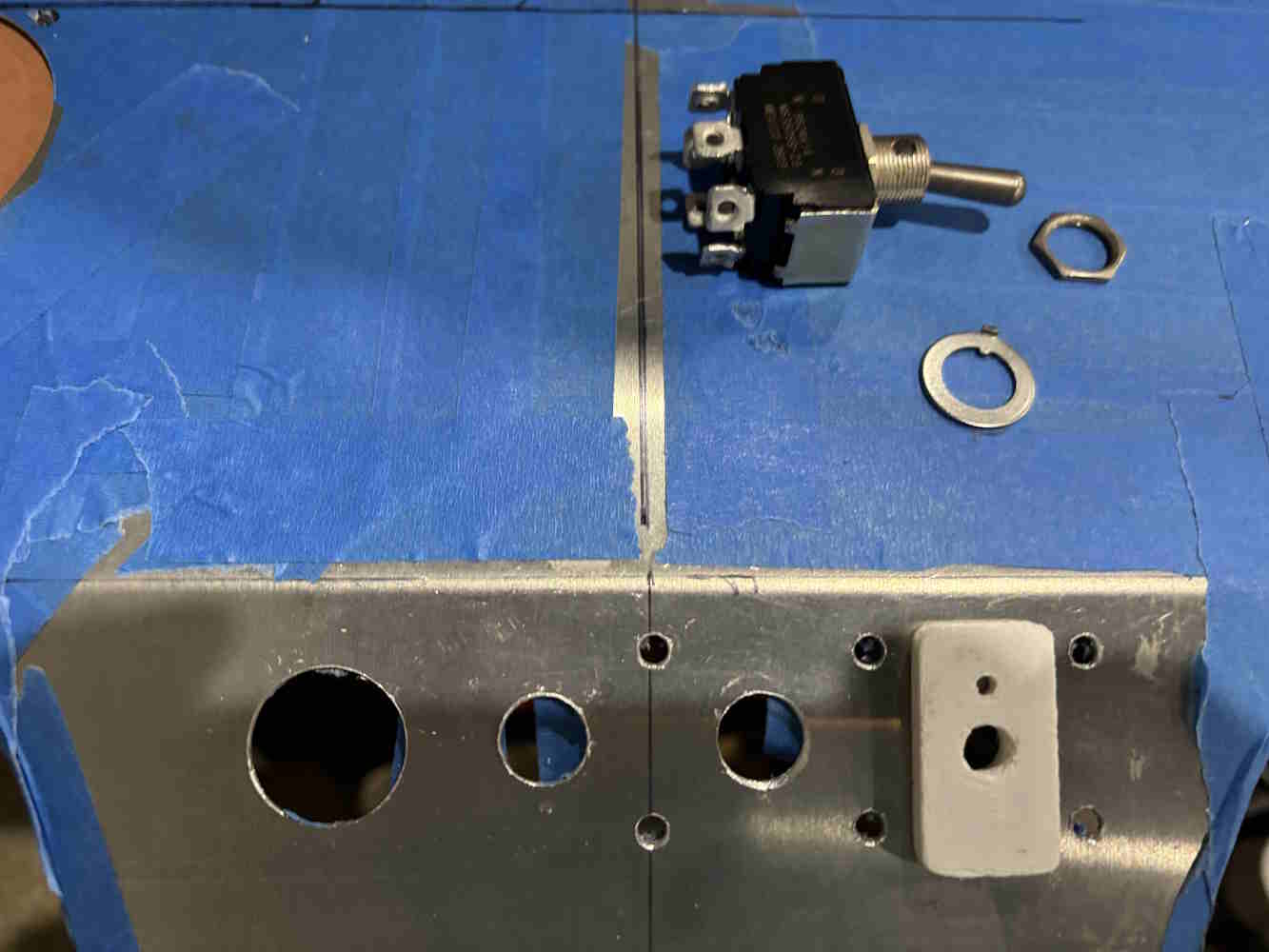

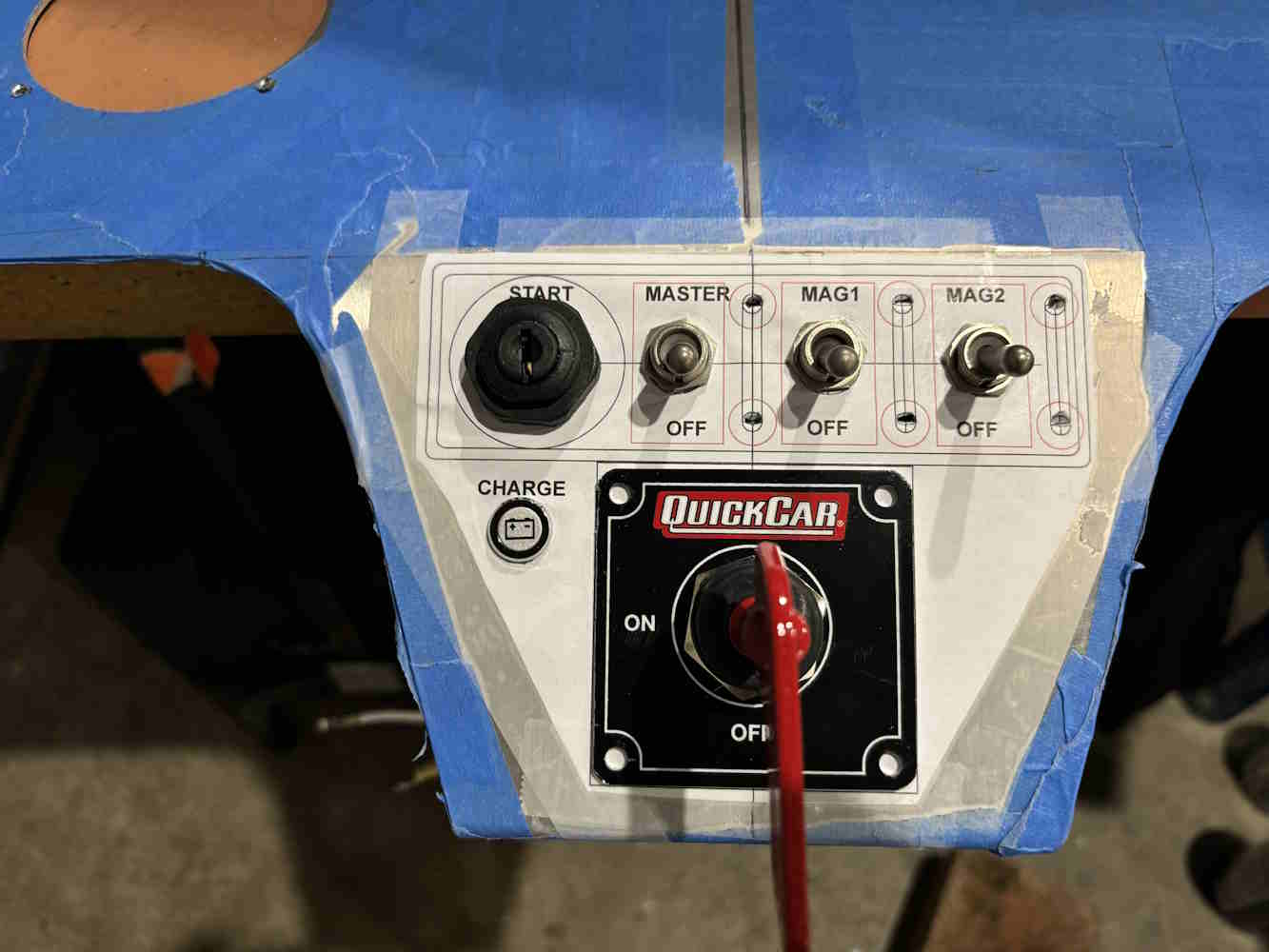

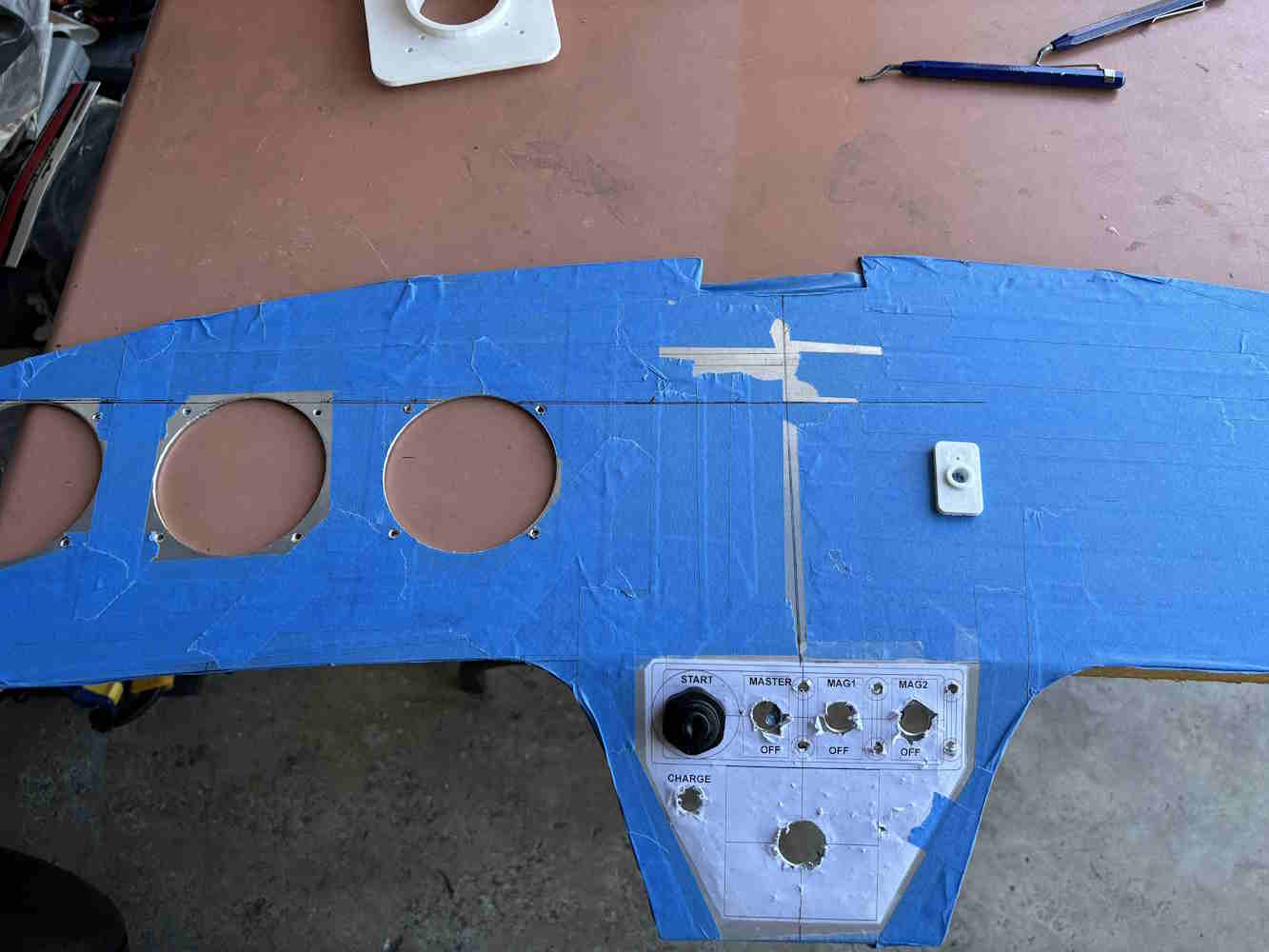

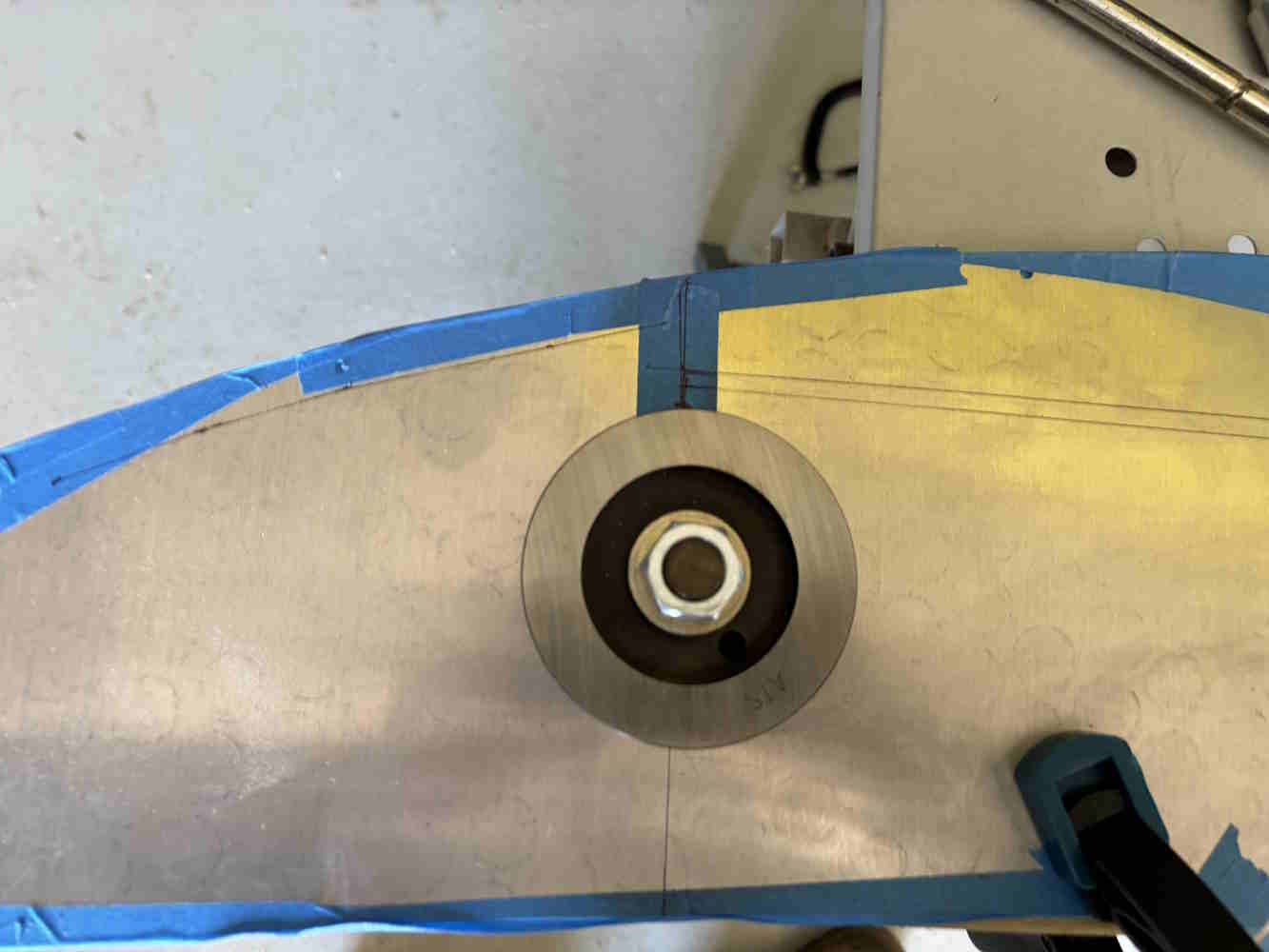

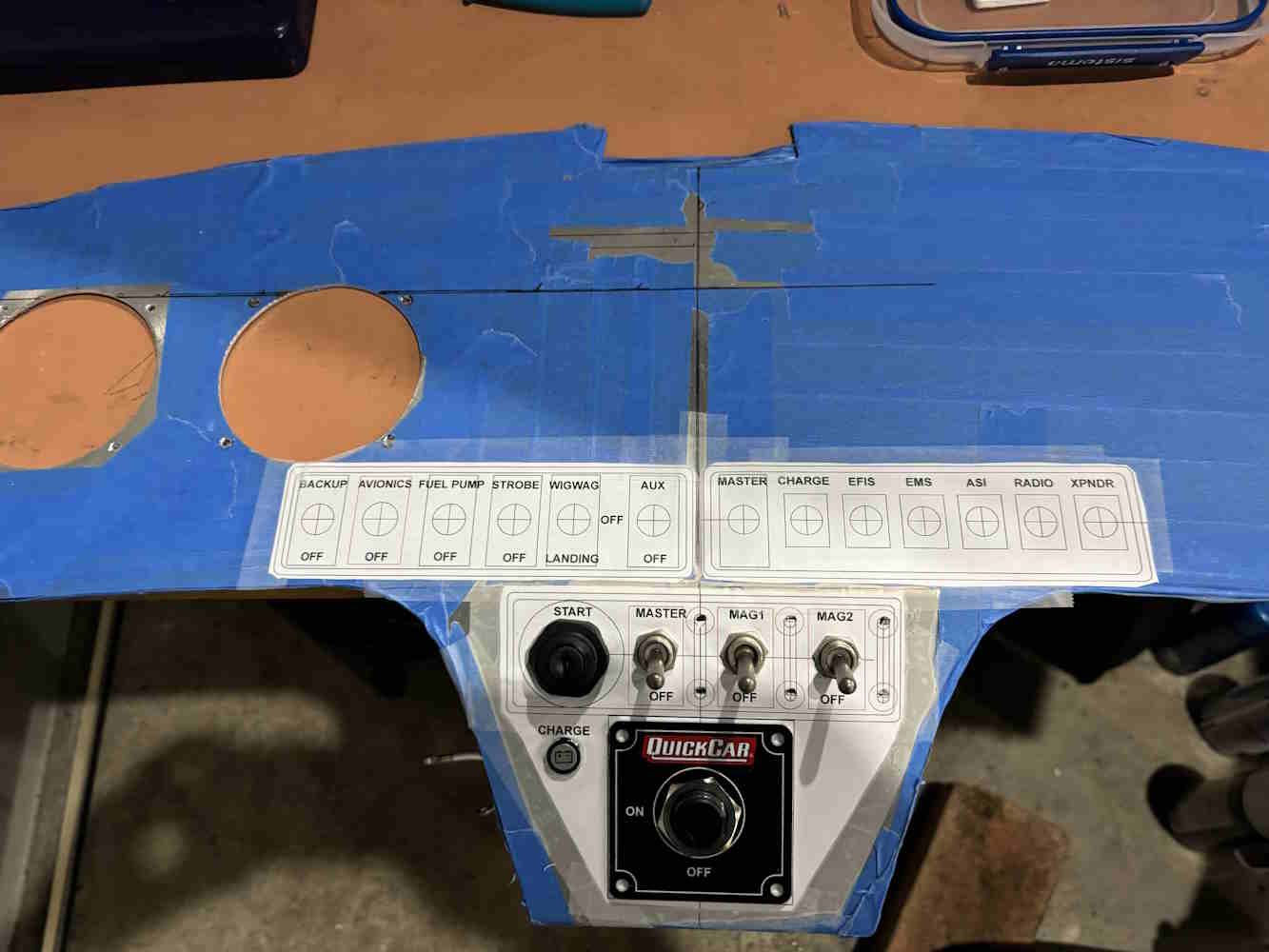

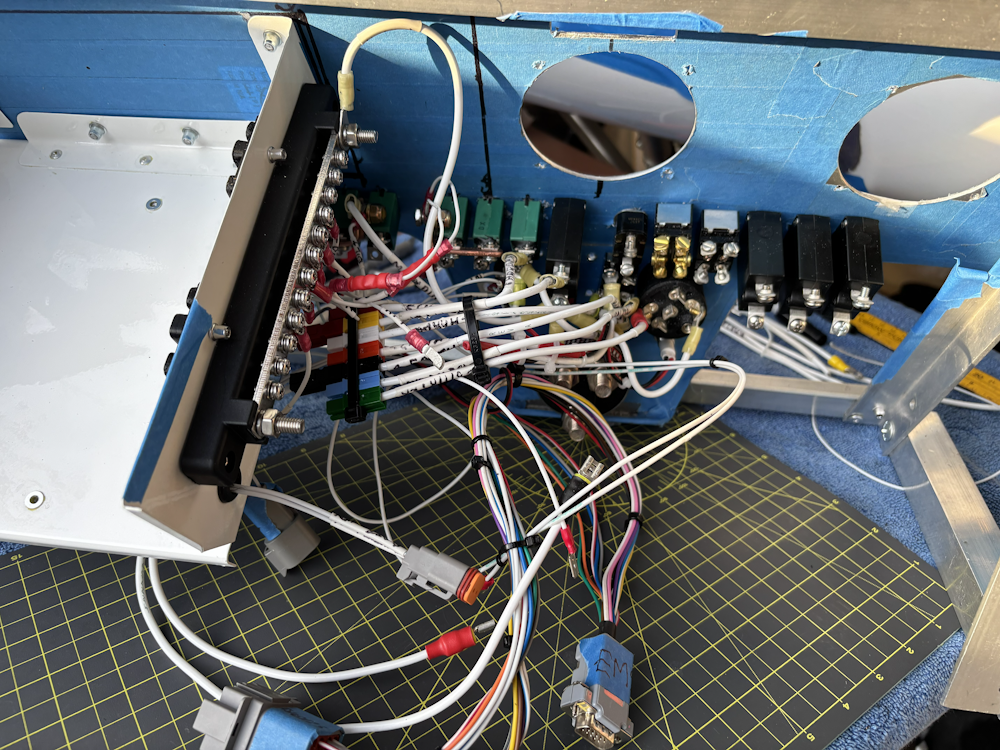

Aircraft: Bushcat 19-2226 Task Date: 20/06/2026 Builder: Malcolm Hardy Category: Instrument Panel Section: 113 Hours: 3 hrs Task: Drill holes for switches and switch guards. Trial fit.Drill holes for anti-rotation tabs using my 3D printed jig.Deburr all holes. More... -
